Adapters

Emulator Adapters (DIP, PLCC, QFP, SO)

Socket Converters (PLCC, PGA, DIP, SO, SOIC, SOJ, TSOP)

Programming Sockets (PLCC, LCC, DIP)

Universal Programming Adapter

QFP Clip-On and Test Boards

Tools

More information about Mechanical Accessories (Requires Adobe Acrobat):


Emulator Adapters (DIP, PLCC, QFP, SO)

ADP-20D - 40-pin DIP to 20-pin DIP
ADP-24D - 28-pin DIP to 24-pin DIP
ADP-28P - 28-pin DIP 28-pin PLCC
ADP-40D - 44-pin PLCC 40-pin DIP
ADP-44P-E - 40-pin DIP to 44-pin
ADP-44P - PLCC extender for 44-pin devices
ADP-44Q - 40-pin DIP to 44-pin QFP
ADP-44Q-P - 44-pin PLCC to 44-pin QFP
ADP-56V - Converts the row of pins of DS-51 Emulation Header for 8xCL580 to 56-pin VSO
ADP-64Q - Converts the row of pins of DS-51 Emulation Header for 8xCL580 to 64-pin QFP
ADP-80Q - Converts the row of pins of DS-51 Emulation Header for 8xC558/598 to 80-pin QFP
ADP-80Q-EB - Converts the PLCC DS-186 Emulation Header for 80C186EB to 80-pin QFP
ADP-100Q-SMC - Converts the row of pins of DS-186 Emulation Header for 80C186EC-PQFP to 100-pin QFP
ADP-100Q-AMP - Converts the row of pins of DS-186 Emulation Header for 80C186EC-PQFP to 100-pin QFP
ADP-100Q-TEX - Converts the row of pins of DS-186 Emulation Header for 80C186EC-PQFP to 100-pin QFP
ADP-100Q-SOL - Converts the row of pins of DS-186 Emulation Header for 80C186EC-PQFP to 100-pin QFP
ADP-100J-SMC - Converts the row of pins of DS-186 Emulation Header for 80C186EC-EIAJ to 100-pin QFP
ADP-100J-SOL - Converts the row of pins of DS-186 Emulation Header for 80C186EC-EIAJ to 100-pin QFP
ADP-132Q - Converts the row of pins of DS-386 Emulation Header to 386ET 132-pin QFP



Socket Converters (PLCC, PGA, DIP, SO, SOIC, SOJ, TSOP)

Converter Sockets PLCC to PLCC and PGA to PLCC
Converter Sockets DIP /shrink DIP to PLCC and PLCC to DIP/shrink DIP
Converter Sockets PLCC to PGA
Converter Socket DIP to SOP/SO/SOIC and DIP to SOJ
Converter Sockets SOP/SO/SOIC to DIP and SOJ to DIP
Converter Sockets TSOP to DIP


Programming Sockets (PLCC, LCC, DIP)

Programming Sockets PLCC to DIP and LCC to DIP



Universal Programming Adapter

ADP-EE - 48 Dip to different sockets



QFP Clip-On and Test Boards

QFP-Test Module Clip On
QFP-Test Board Series Q1000 QFP-Board Modules
QFP-Solder Base Adapter Series Q1001
QFP-Test Board Series Q2000 and QFP-Test Board Modules
QFP-Socket Cover Series Q2101 and QFP-Base Socket Series Q2001
QFP-Adapter Series Q2201
QFP-EXTENDER SERIES Q2501 and Q2502



Tools

TOOLS



ADP-20D

Converts the 40-pin DIP footprint of an 80C51 to 20-pin DIP of an 89C1051/2051. Used with EB-51, DS-51 and many other 8051 development tools.

ADP-24D

Converts the 28-pin DIP footprint of an 87C752 to 24-pin DIP of an 87C751 or equivalents. Used to adapt DS-752 or DS-51 emulators to support 87C750/1 and others.

ADP-28P

Converts the 28-pin DIP footprint of an 87C75/1/2 to 28-pin PLCC of an 87C750/1/2 or equivalents. Used to adapt DS-752 or DS-51 emulators to support PLCC packages. Equals to ET-AS-DIP-PCC-2828G.

ADP-40D

Converts the 44-pin PLCC footprint of 8051 microcontrollers to 40-pin DIP of 8051 microcontrollers or equivalents. Used with DB-51, EB-51 and many other 8051 development tools.

ADP-44P

Converts the 40-pin DIP footprint of 8051 microcontrollers to 44-pin of 8051 microcontrollers or equivalents. Used with DS-51, EB-51 and many other 8051 development tools.

ADP-44P-E

This is a PLCC extender for 44-pin devices. Used to provide more space from the emulator to the target board.

ADP-44Q

Converts the 40-pin DIP footprint of 8051 microcontrollers to 44-pin QFP of 8051 microcontrollers or equivalents. The bottom plug is soldered to the target board. Used with DS-51, EB-51 and many other 8051 development tools. Equals to OM5020 and OM5013.

ADP-44Q-P

Converts a 44-pin PLCC footprint to 44-pin QFP. The bottom plug is soldered to the target board. Used for any QFP device emulation with one-to-one PLCC pinout configuration.

ADP-56V

Converts the row of pins of DS-51 Emulation Header for 8xCL580 to 56-pin VSO. The bottom plug is soldered to the target board. This adapter is equivalent to OM5017 and OM5033.

ADP-64Q

Converts the row of pins of DS-51 Emulation Header for 8xCL580 to 64-pin QFP. The bottom plug is soldered to the target board. This adapter is equivalent to OM5017 and OM5016.

ADP-80Q

Converts the row of pins of DS-51 Emulation Header for 8xC558/598 to 80-pin QFP.The bottom male plug is soldered to the target board. This adapter is equivalent to ET-EPP-080QF-08W.

ADP-80Q-EB

Converts the PLCC DS-186 Emulation Header for 80C186EB to 80-pin QFP. The bottom plug is a surface mounted clip.

ADP-100Q-SMC

Converts the row of pins of DS-186 Emulation Header for 80C186EC-PQFP to 100-pin QFP. The bottom plug is a surface mounted clip. This adapter is equivalent to ET-EPC-100QF01-SM3.

ADP-100Q-AMP

Converts the row of pins of DS-186 Emulation Header for 80C186EC-PQFP to 100-pin QFP. The bottom male plug is used for AMP sockets. This adapter is equivalent to ET-EP5-200QF01-ASM.

ADP-100Q-TEX

Converts the row of pins of DS-186 Emulation Header for 80C186EC-PQFP to 100-pin QFP. The bottom male plug is used for Textool sockets. This adapter is equivalent to ET-EP5-100QF01-TSM.

ADP-100Q-SOL

Converts the row of pins of DS-186 Emulation Header for 80C186EC-PQFP to 100-pin QFP. The bottom male plug is a surface mounted plug soldered to pads. This adapter is equivalent to ET-EP5-100QF01-SSM.

ADP-100J-SMC

Converts the row of pins of DS-186 Emulation Header for 80C186EC-EIAJ to 100-pin QFP. The bottom male plug is a surface mounted clip. This adapter is equivalent to ET-EPC-100QF06-SMA.

ADP-100J-SOL

Converts the row of pins of DS-186 Emulation Header for 80C186EC-EIAJ to 100-pin QFP. The bottom male plug is a surface mounted clip soldered to pads. This adapter is equivalent to ET-EPP-100QF06-SM.

ADP-132Q

Converts the row of pins of DS-386 Emulation Header to 386ET 132-pin QFP. The bottom male plug is a clip-on equivalent to ET-EPC132QF03LG2.

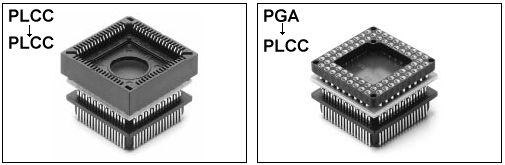

Converter Sockets PLCC to PLCC and PGA to PLCC



The Converter socket is used for testing purposes or when a component in PGA form is to be inserted into a PLCC socket. The precision socket and the robustly constructed PLCC adapter with solid four sided pins ensure the highest functional security. All converter sockets are fully tested. Special types upon request.

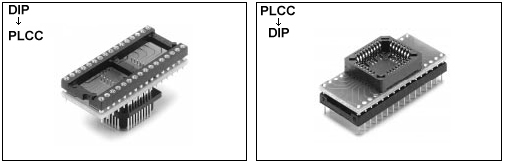

Converter Sockets DIP /shrink DIP to PLCC and PLCC to DIP/shrink DIP



The Converter socket is used for testing purposes or when a component in DIP form is to be inserted into a PLCC socket or reversal. The DIP sockets with turned precision pins and the robustly constructed PLCC adapter with solid four sided pins ensure the highest functional security. All converter sockets are fully tested. Certain PLCC components have more connection than the comparable ICs in the DIP housing. The pin-outs are shown in the table.
Special types upon request.


Converter Sockets PLCC to PGA

Converter Sockets PLCC to PGA to solder IC components in PLCC housing. The converter socket is inserted into a PGA socket or soldered directly onto the PCB. The electrical connections of the PLCC converters correspond to
the wired PLCC/LCC sockets.

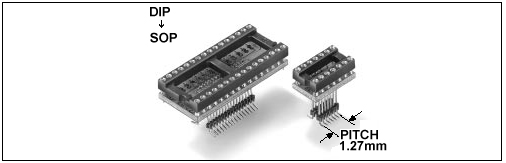

Converter Socket DIP to SOP/SO/SOIC and DIP to SOJ



Converter sockets DIP to SOP or SOJ to solder on the PCB. Pad dimension (D) of the solder contacts are adaptable. SOJ components with all pins connected have a 1:1 bond. For components with some pins not connected please use the next higher pin count (not 1:1 bond).

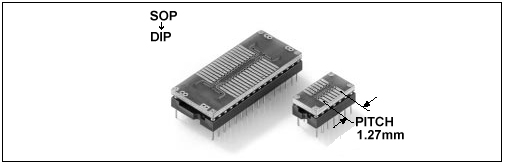

Converter Sockets SOP/SO/SOIC to DIP and SOJ to DIP



To convert components in SOP or TSOP housing. The converter socket can be inserted or soldered as required. The robust DIP housing with turned connecting pins ensure a very high functional security. For large amounts, it is recommended that the ICs are mounted onto a PCB. A mask for the soldering paste application is available upon request. SOJ components with all pins connected have a 1:1 bond. For components with some pins not connected
please use the next higher pin count (not 1:1 bond).

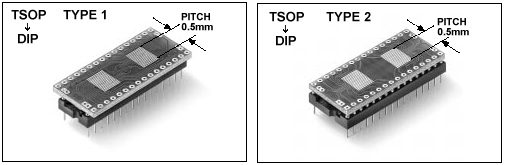

Converter Sockets TSOP to DIP



To convert components in TSOP housing. The converter socket can be inserted or soldered as required. The robust DIP housing with turned connecting pins ensure a very high functional security. For large amounts, it is recommended that the ICs are mounted onto a PCB.
A mask for the soldering paste application is available upon request.

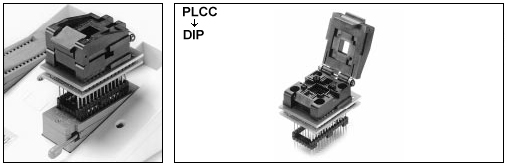

Programming Sockets PLCC to DIP and LCC to DIP



To program components in PLCC or LCC form. The high quality Burn-In sockets from Yamaichi ensure the highest functional efficiency with a mechanical life of more than 10 000 cycles. In some cases, PLCC components have more contacts than comparable components in DIP housings. The pin outs are shown in the table below.


ADP-EE

Universal programmer adapter. It connects 48 Dip to different sockets.


QFP-Test Module Clip On

Test Board, Extender, Clip On.

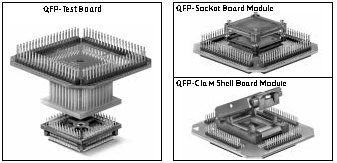

QFP-Test Board Series Q1000 QFP-Board Modules

The entire test body is mounted onto the QFP-Solder Base Adapter.


QFP-Solder Base Adapter Series Q1001

The QFP-Solder Base Adapter gives a direct and economical connection to the SMD Pad. It can be used as an Emulator Base or as converters base. Compact design, JEDEC compatible, cost effective are just a few of the Features of this convenient tool.

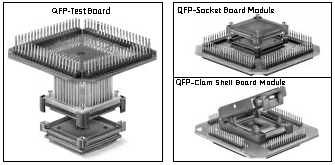

QFP-Test Board Series Q2000 and QFP-Test Board Modules

The entire test body is screwed onto the QFP-SMD Socket.


QFP-Socket Cover Series Q2101 and QFP-Base Socket Series Q2001

The QFP-Socket Cover comes with 4 screws M2x6 and the QFP - Base Socket comes with a screwdriver. The sockets are JEDEC Pad compatible and compact in design.


QFP-Adapter Series Q2201

The QFP-Adapter Q2201 is the interface between the QFP-SMD Socket Q2001 and the QFP-Extender Q2501 / 2502. The adapter comes with 4 M2x10 screws.

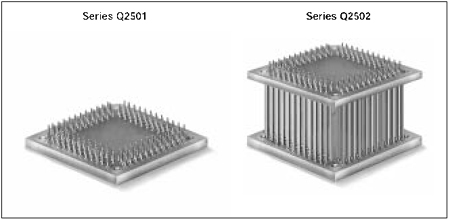

QFP-EXTENDER SERIES Q2501 and Q2502

By using the QFP-Extender the user can build up his individual height.

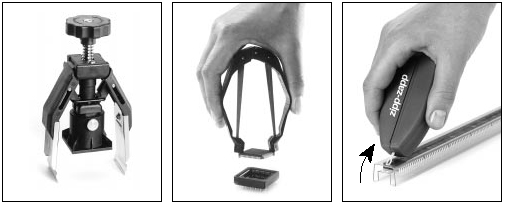

TOOLS



PGA-Inserter, PLCC-Extractor, Zipp-Zapp.
